Lens Anatomy & Physiology

Curriculum lesson · updated 2026-07-30

Pending review from section expert
On this page

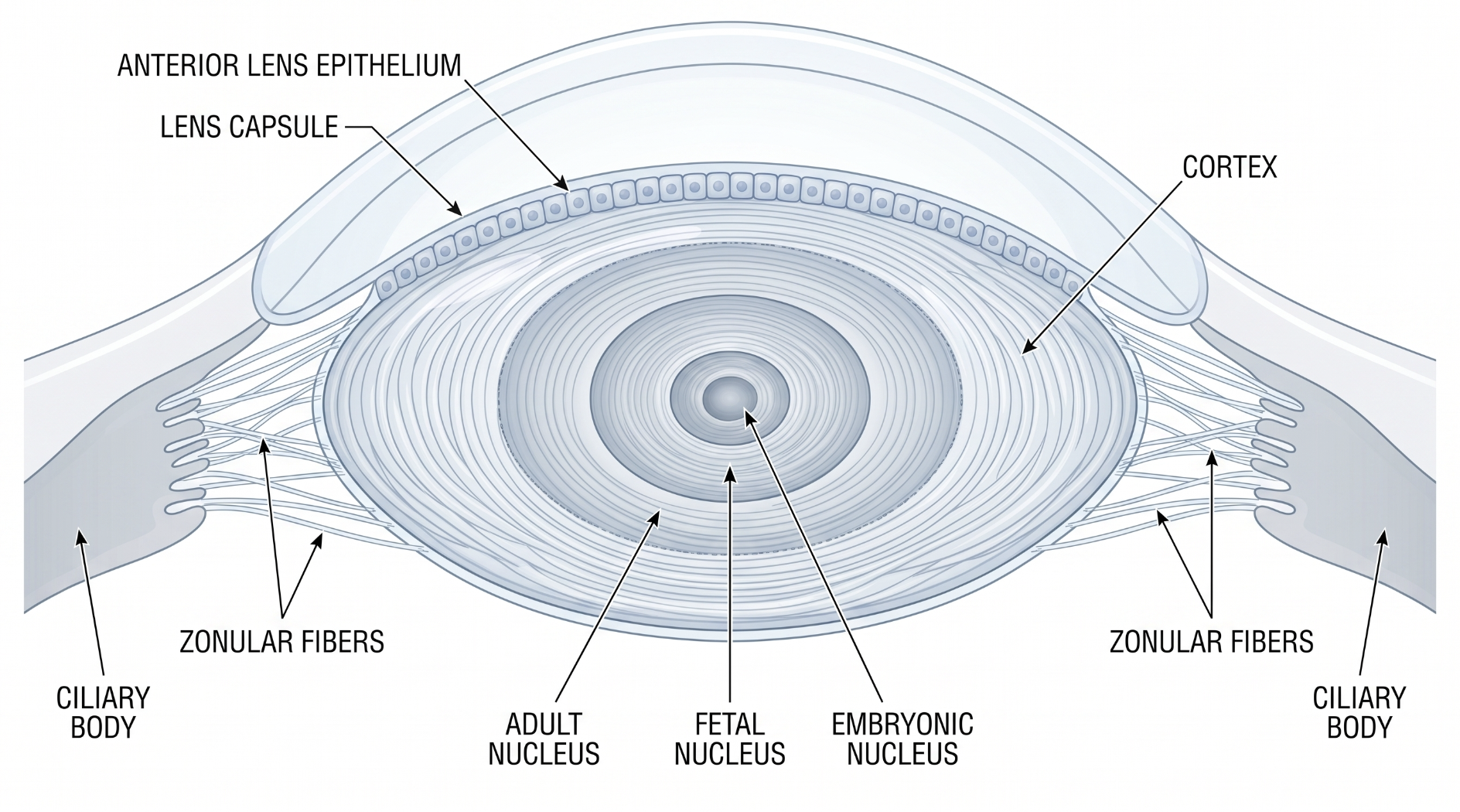

Cross-section of the crystalline lens showing the capsule, anterior-only epithelium, cortex, and nested nucleus zones, with zonular fibers anchoring the lens to the ciliary body
The Lens in Cross-Section

The lens is a transparent, avascular, biconvex structure in the posterior chamber, immediately behind the iris and anterior to the vitreous face, suspended by zonular fibers from the ciliary body's pars plicata.1 It is enclosed by an elastic, collagen-rich capsule (a basement membrane secreted by the underlying epithelium) that is continuous around the entire lens.1 A single layer of cuboidal epithelial cells lies beneath the anterior capsule only — posterior epithelial cells differentiate into fiber cells early in development and are never replaced.1 Internally the lens has a central nucleus (embryonic, fetal, and adult zones laid down at different life stages) surrounded by a softer cortex of more recently formed fiber cells.1

New lens cells arise continuously at the equatorial germinative zone, where epithelial cells proliferate, elongate, and migrate posteriorly to differentiate into secondary fiber cells.1 During differentiation, fiber cells undergo regulated degradation of their nucleus, mitochondria, and endoplasmic reticulum — clearing away structures that would otherwise scatter light.1 As organelles clear, fiber cells fill with alpha-, beta-, and gamma-crystallin proteins at very high concentration, raising the local refractive index while short-range molecular ordering keeps the dense protein solution transparent.1 Cytoskeletal proteins maintain each fiber cell's hexagonal cross-section and interlocking ball-and-socket contours, packing them into a highly ordered array that further minimizes scatter.1

With no blood vessels or nerves, the lens depends entirely on aqueous humor for nutrient delivery and waste removal.1 A lens-wide "pump-leak" microcirculation organizes this exchange: gap junctions (connexins) couple fiber cells into a single functional syncytium, while Na⁺/K⁺-ATPase pumps concentrated in the epithelium and peripheral fibers drive a circulating current that carries nutrients toward the avascular core and clears waste outward.1

Accommodation adds refractive power for near focus: parasympathetic (CN III) stimulation contracts the ciliary muscle, changing zonular tension and lens shape. The exact mechanism is debated — Helmholtz's classical theory holds that ciliary contraction relaxes zonular tension, letting the lens's own elasticity round it up, while Schachar's theory instead proposes equatorial zonules tauten during accommodation, steepening the central lens surface. Neither hypothesis alone explains every observation, and the mechanism remains actively studied.2

The lens develops from surface ectoderm: a lens placode invaginates to form the lens vesicle, whose posterior wall cells elongate to fill it as primary fiber cells (the embryonic nucleus), while the anterior wall persists as lens epithelium.1 After birth, secondary fiber cells continue to be added from the equatorial germinative zone throughout life, so the lens keeps growing in concentric layers, never discarding old fiber cells from its core.1 This lifelong accumulation gradually increases lens size, density, and stiffness — reducing accommodative shape change (contributing to presbyopia) and making the aging, compact nucleus and long-lived crystallins progressively more vulnerable to the changes that produce cataract.1

  • Age-related disruption of crystallin packing and organelle-clearance mechanisms underlies age-related cataract
  • The lens capsule's basement-membrane structure is the anatomic basis for capsulorhexis and in-the-bag intraocular lens fixation during cataract surgery
  • Zonular weakness or discontinuity (pseudoexfoliation, trauma, connective tissue disorders such as Marfan syndrome) can produce lens subluxation or dislocation
  • Progressive loss of lens elasticity with fiber compaction over decades is the structural basis of presbyopia
  • The lens is the only structure in the body that keeps growing in layers throughout life without ever shedding a cell1
  • Complete avascularity and lack of innervation mean the lens itself cannot generate pain
  • The posterior capsule has no epithelium beneath it, which is why posterior capsule opacification originates from residual anterior/equatorial epithelial cells migrating posteriorly, not a posterior source
  • The pump-leak microcirculation, not a blood supply, keeps the avascular lens core nourished1
  • Common pitfall: presenting Helmholtz's theory as the sole, settled explanation for accommodation rather than one of two competing, incompletely proven hypotheses2
  • Common pitfall: forgetting lens epithelium exists only anteriorly, which explains why PCO is a proliferative epithelial phenomenon, not a true "regrowth" of the native lens
  • Common pitfall: overlooking zonular integrity as a contributor to lens position, leading to missed subluxation on exam in at-risk patients

Lens Structure & Nutrient Pump-Leak Circulation

Clinical Skills for This Topic

Practice Questions

Question 1 of 6

Score: 0/0

Why does the lens depend entirely on aqueous humor rather than a blood supply for its metabolism?

Saved in this browser.

References

  1. [1]Cheng C, Vu MP. The Mammalian Ocular Lens in Focus: Development, Anatomy, Physiology, Transparency, Biomechanics, and Age-related Challenges. Journal of Visualized Experiments. 2026.
  2. [2]Zhang G, Wei Q, Lu L, Lin AL, Qu C. The evolution of mechanism of accommodation and a novel hypothesis. Graefe's Archive for Clinical and Experimental Ophthalmology. 2023.
